ZONEMASTER

MASTER YOUR SEEDBED. IMPROVE YOUR SOIL. INCREASE YOUR YEILD.

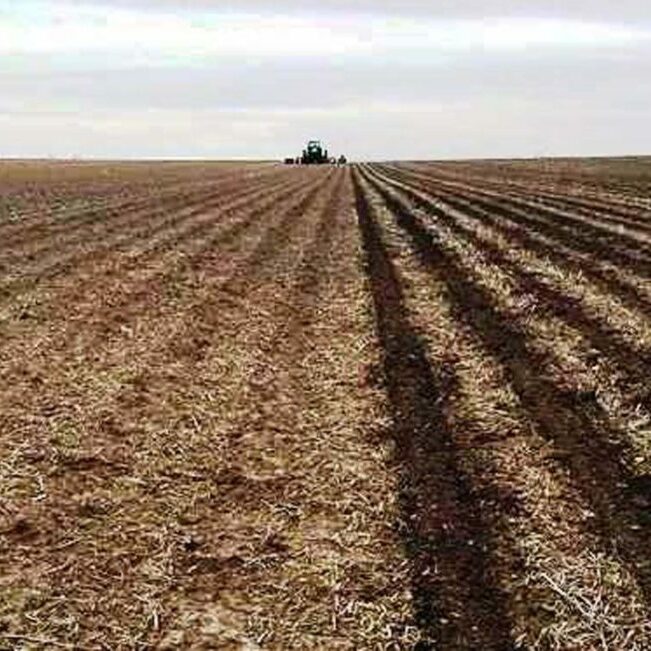

The ZoneMaster, designed by strip-till farmers for strip-till farmers, is not just another strip freshener. Designed and created tough enough to create optimal spring strips or provide fall residue management, Vulcan Equipment's ZoneMaster uses vertical tillage to create an optimal planting environment, which improves planter row unit performance and ride. Able to be pulled at speeds up to 13 miles per hour, ZoneMaster allows you to cover many acres in a short amount of time.

HOW IT WORKS

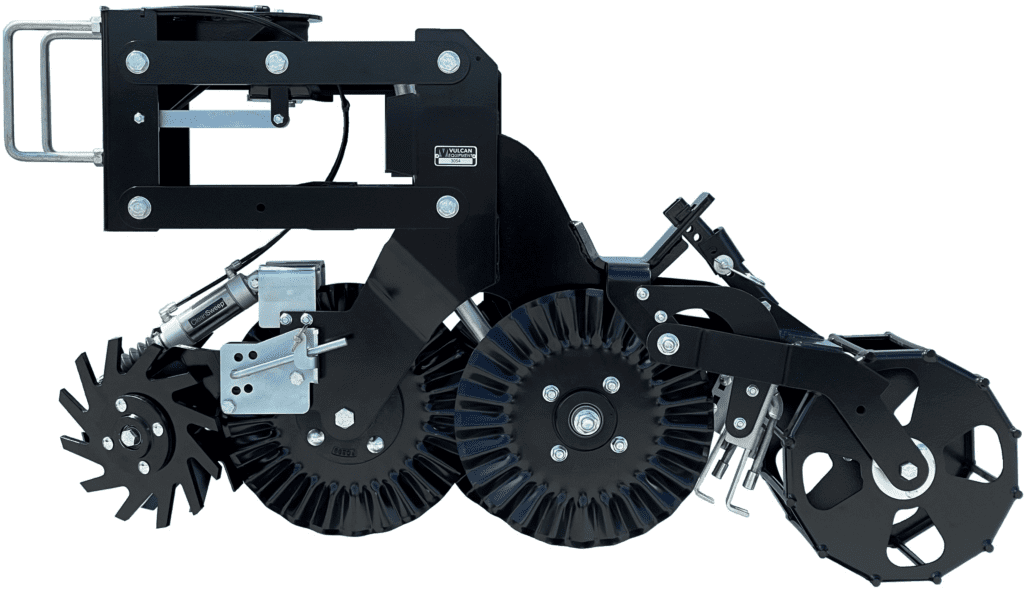

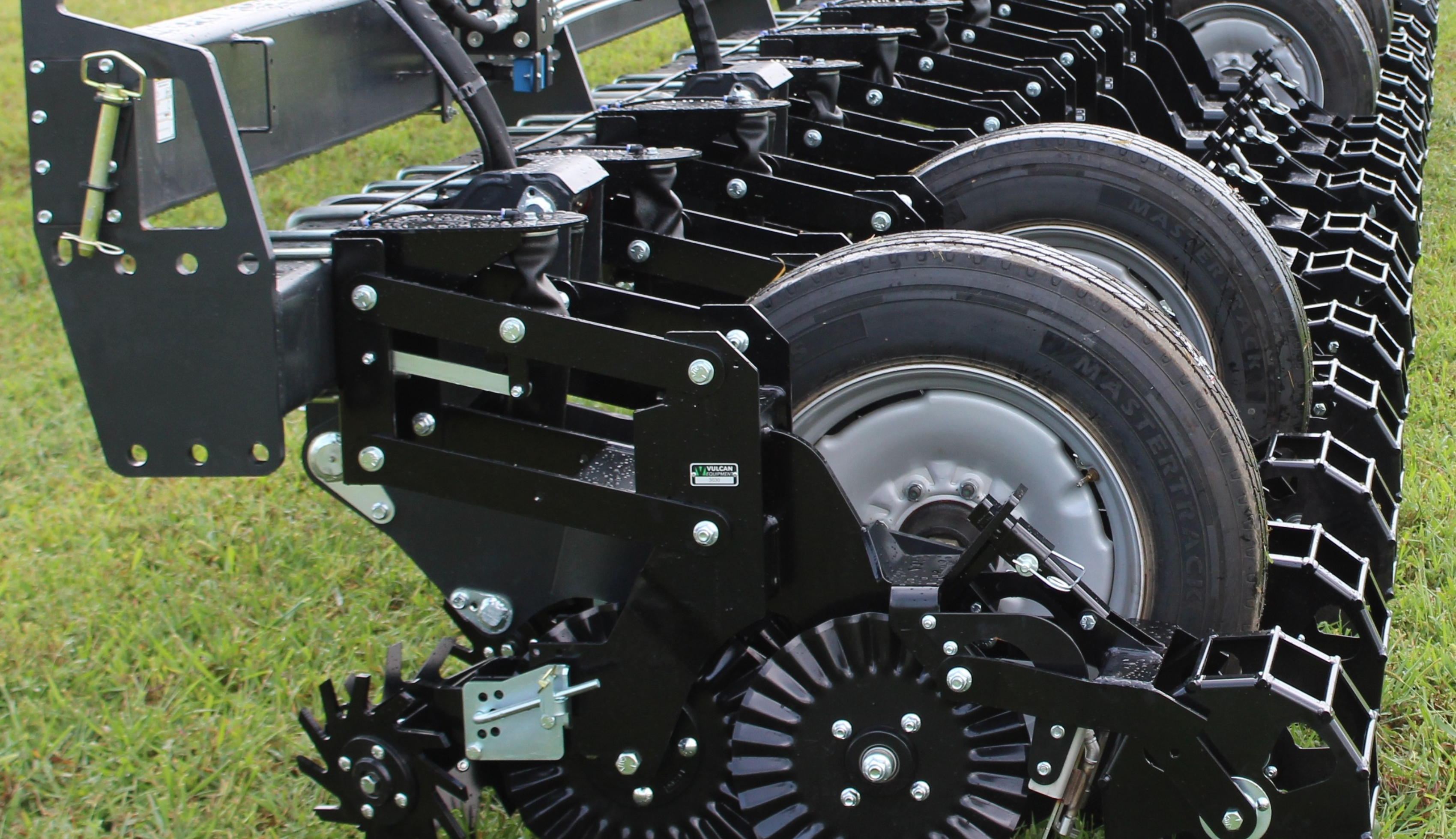

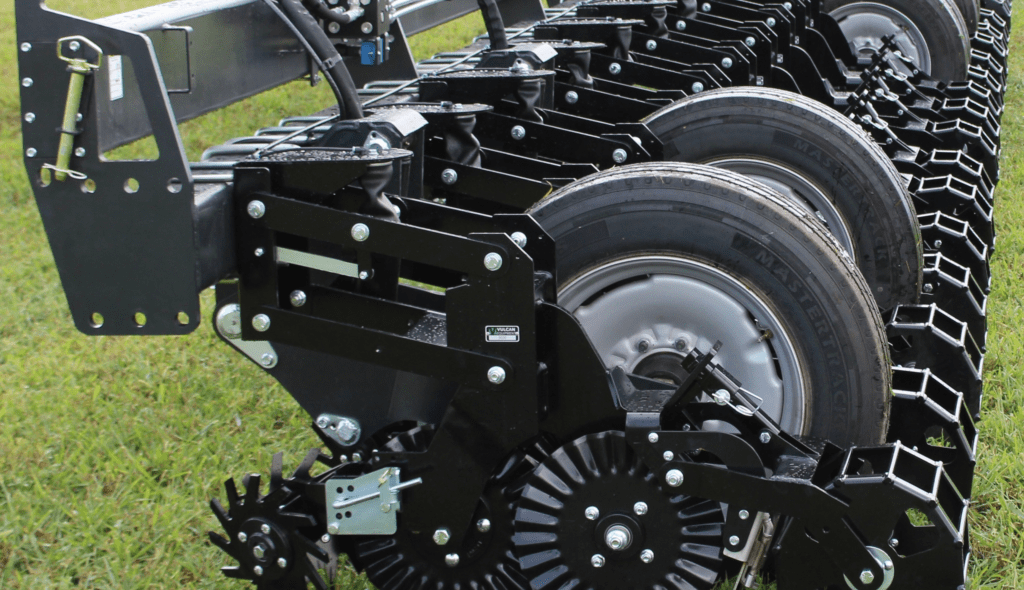

ZoneMaster uses parallel linkages to the row unit allowing it to conform to irregularities in the ground, and to increase flexibility. This results in accurate individual row unit depth control. The adjustable rolling baskets act as gauge wheels to keep the coulters at the desired depth. The ZoneMaster also has adjustable air bags that make optimizing down-pressure quick and easy.

Available configurations and options include:

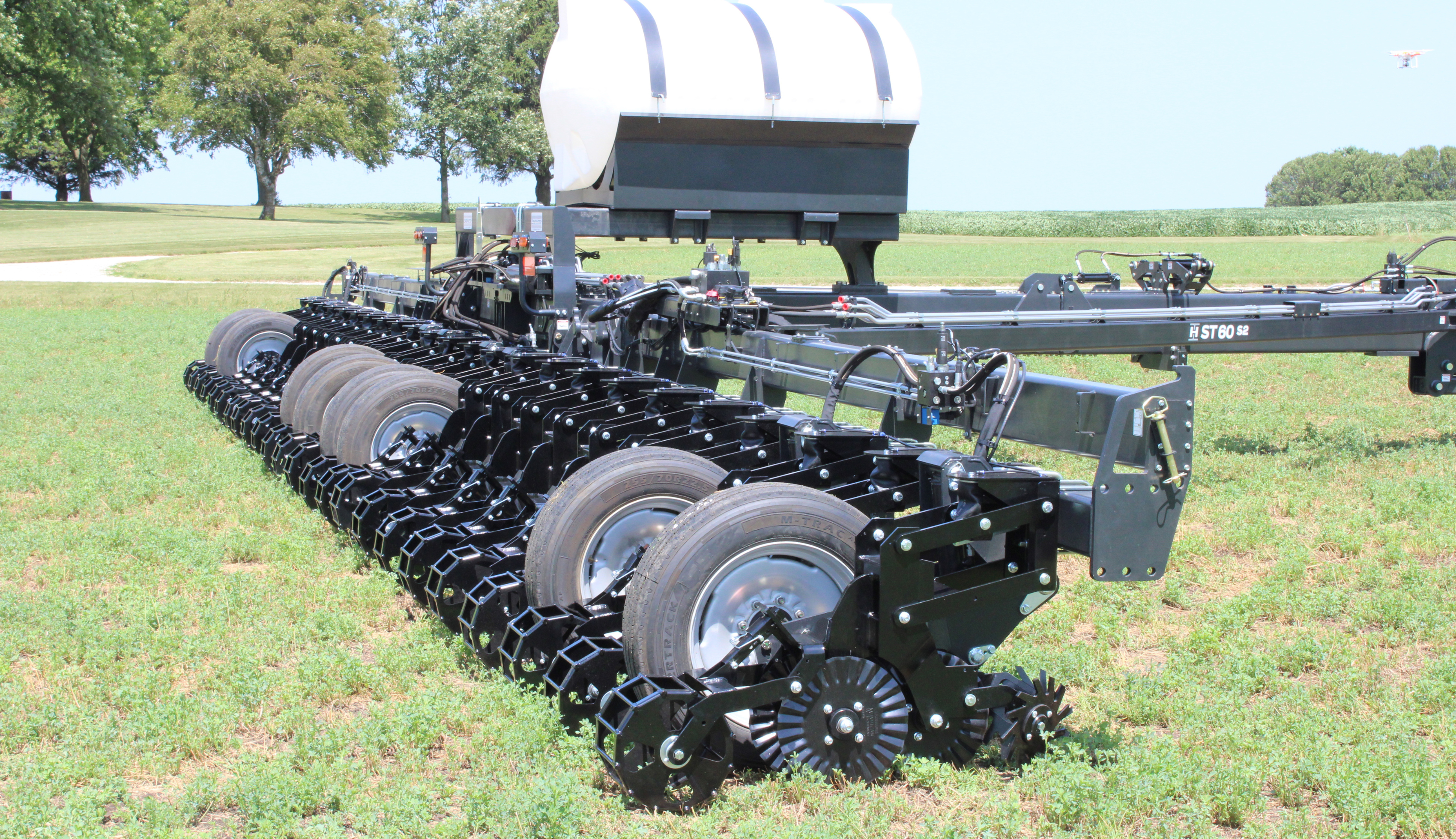

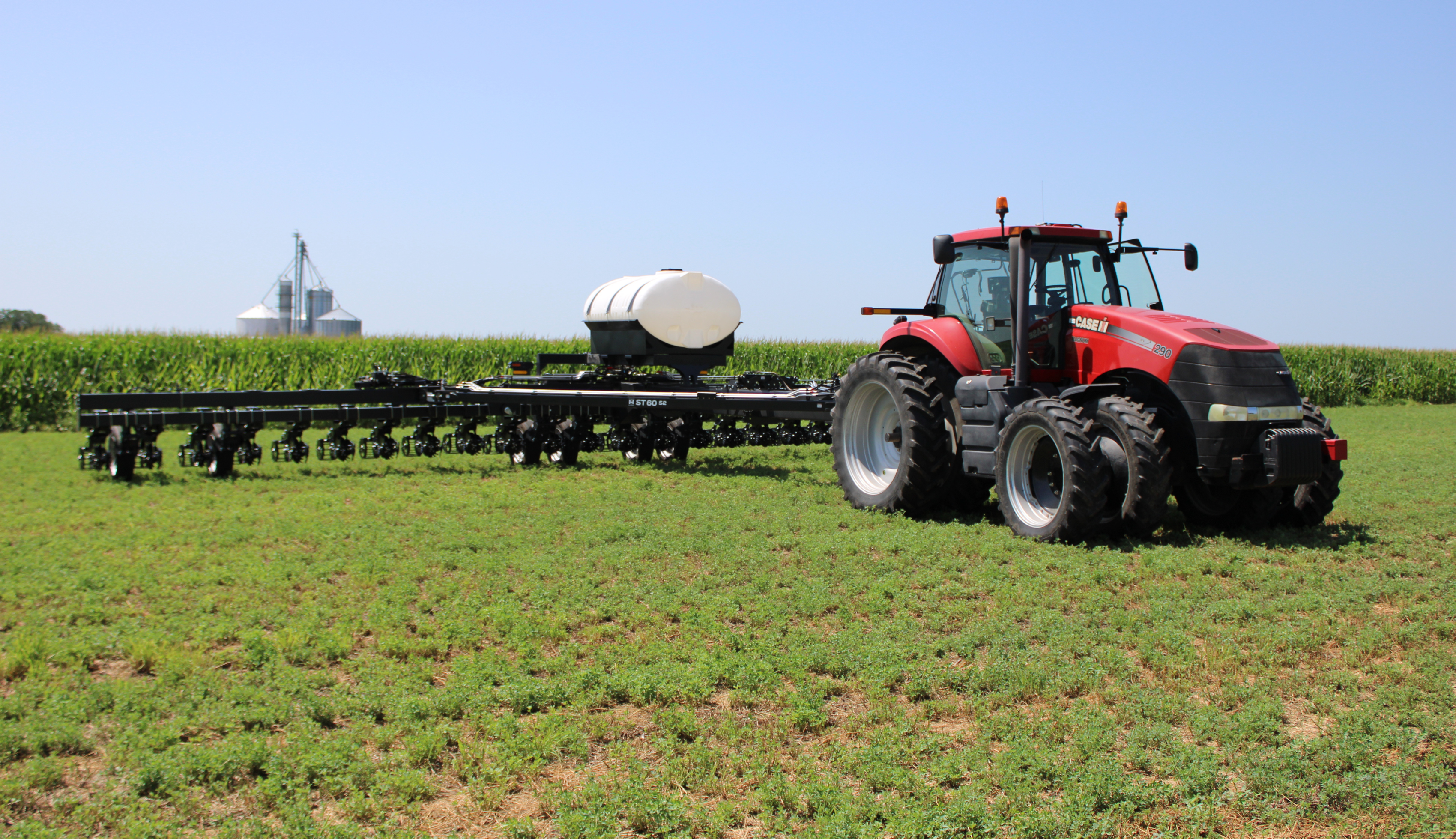

  • Mounted or pull-type toolbar configurations
  • Individual row units for mounting on your own toolbar
  • Air compressor kit for adjustable down pressure
  • Optional liquid or dry fertilizing kit
  • Optional clean sweep kit for row cleaners
  • Optional Schlueter Harrow attachment to further improve the benefits of ZoneMaster
  • Y Liquid Kit

FREQUENTLY ASKED QUESTIONS

ZoneMaster is available from our dealers and distributors. To find your local dealer, click here.

As farmers, we realize how frustrating it is to have a part fail and find that a replacement part is not readily available.

All bearings and hubs are standard sizes and can be easily attained at nearly any equipment dealer. For specific parts, contact your local dealer or call us at 815-688-3051 to order replacement parts.

Depending on the customization options and add-ons you choose, a ZoneMaster row unit will weigh approximately 285 lbs.

The ZoneMaster's operating speed range is from 5-13 mph.

Yes, ZoneMaster is customizable and can be set up for 20-inch rows.

Yes. Vulcan Equipment offers several configurations of liquid and dry fertilizer equipment options for the ZoneMaster. Check out our available options on the product page

Maximum working depth is up to 6” depending on soil conditions. Operating at less than planting depth is ideal to leave the soil under the seed untouched and to keep moisture in while tilling above where the seed will be able to warm up, dry out, and optimize the soil for planting.

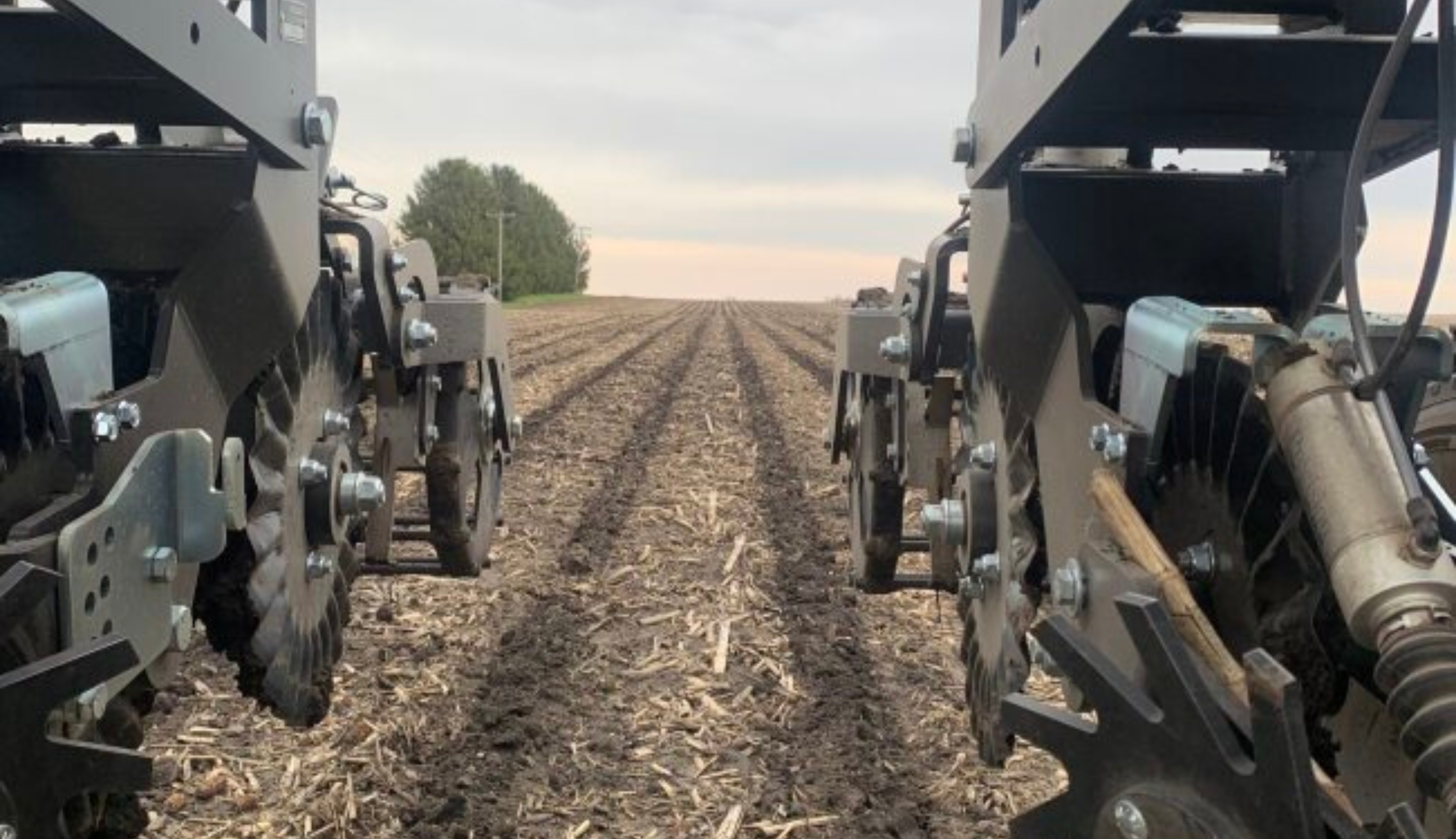

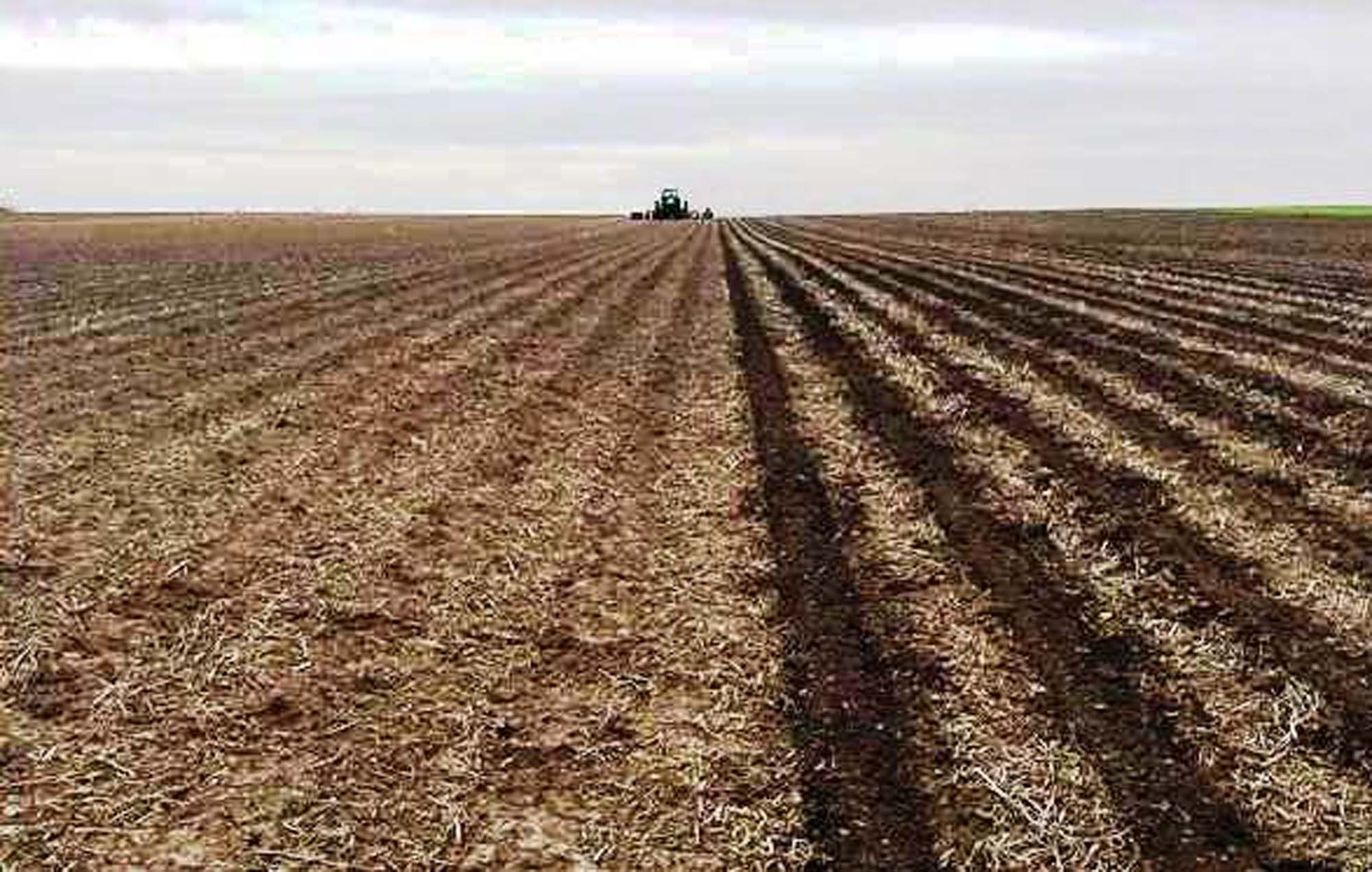

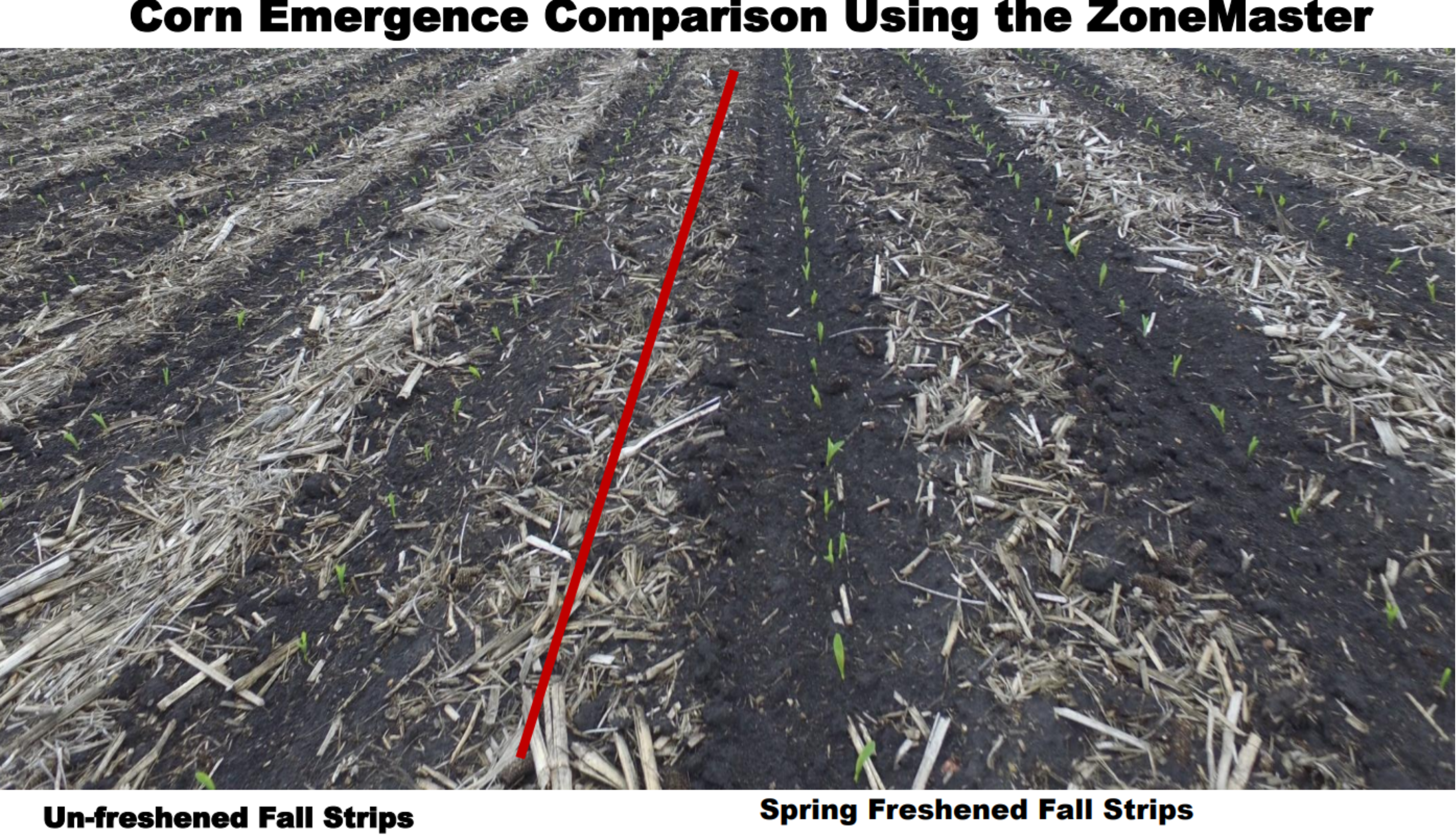

Yes, the ZoneMaster can either be used as a primary spring tillage unit, or as a strip refresher.

Yes, you can purchase as many units as you need, with or without a toolbar. Individual units can be mounted on nearly any toolbar.

All painted parts have been powder-coated and will withstand heavy use.

ZoneMaster units are manufactured and assembled in Forrest, IL.
